Steering input adjustments

Following on from the previous post on walking and steering, I realised that when moving the spine joints, the rear feet remain anchored to the ground, when it would be better if they rotated around the spine motors, to give a better turning circle for steering.

The reason behind why the feet remain fixed is because their targets are being defined in world coordinate space, so moving the spine won’t change the target.

There are advantages to defining the targets in world space for future work, when the robot knows more information about its environment. For example the legs can be positioned in the world in order to navigate upcoming terrain or obstacles. But for now, it is often useful to work in coordinates local to the base (front base for front legs, and rear base for rear legs), since in this way you don’t have to worry about the relative positioning of the front base w.r.t. rear.

I will eventually update the kinematics code so either world or local targets can be selected.

For now however, I have made an update to the code, so if the spine joint sliders, gaits or walking/steering inputs are used, the rear leg targets move with the spine. To explain this better visually:

This slideshow requires JavaScript.

Another minor adjustment you might notice was the widening of the stance, to provide a larger support polygon. The walking gaits still need fine-tuning, as walking on the actual robot is still unstable and slow.



Body Moving

New video!

I have been testing the movement of the robot’s base in the world, while keeping the legs fixed to the ground, as a test of the robot’s stability and flexibility.

The robot base can now be controlled, either via the GUI, keyboard or gamepad, in the following ways:

  • Translation in XYZ
  • Roll/pitch/yaw
  • Movement of the two spine joints – Front of robot remains still, while rear adjusts
  • Movement of the two spine joints – Front of robot attempts to counteract the motion of the rear

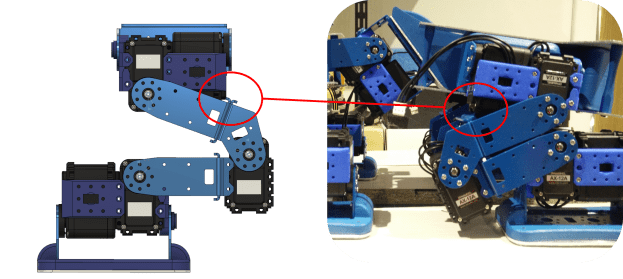

You may notice the real robot can’t move its upper leg all the way horizontally as the IK might suggest is possible, because there is a small clash between the AX-12 and the metal bracket, but this should be fixed by filing or bending the curved metal tabs:

Leg Clash Check - CAD-Actual.png


Software updates

I have recently written an OpenCM sketch to control the robot servos, in a way similar to how it was being done with the older Arbotix-M, but this time using the Robotis libraries for communicating with the motors.

I have also been making various updates to the Python test code, with a few of the main issues being:

  • Improved the code for positioning the base and base target in world
  • Updated base/spine transforms – Front legs now move with base, not first spine joint
  • Fixed the leg IK – Legs now remain in line with ground when the base moves
  • Added new keyboard/joystick input modes for controlling base position, base orientation, spine joints
  • Updated the serial string sending function and fixed some minor issues
  • Moved a load of script configuration variables to a separate Params module
  • Added a combo box to the GUI front-end for loading a selection of CSV files (as an update to the previous two fixed buttons)

All the latest code can be found on the Quadbot17 GitHub project page as usual.

Four legs built – New videos and images

With the hardware for all four legs gathered, I have assembled the first standalone version of the quadruped. The MakerBeam XL aluminium profiles were adopted as before, to create a temporary chassis.

The fact that the robot can now stand on its four feet meant I could quickly give the walking gaits a test on the real hardware: The Python test software reads the up/down and forward/back position of each leg for a number of frames that make up a walking gait, the IK is solved, and the resulting joint values are streamed via serial over to the Arbotix-M, which simply updates the servo goal positions. No balancing or tweaking has been done whatsoever yet, which is why in the video I have to hold on to the back of the robot to prevent it from tipping backwards.

I took some time to make a video of the progress so far on this robot project:


A chance for some new photos:


Finally, here is an older video showing the Xbox One controller controlling the IK’s foot target position, and a simple serial program on the ArbotiX-M which receives the resulting position commands for each motor (try to overlook the bad video quality):


In the next stage I will start building the robot’s body, as per the CAD design, which is for the most part 3D printed parts and aluminium sheets, combined with the 2 DoF “spine” joints.

Body/spine and improved leg kinematics

The Python test program has been updated to include the additional spine joints, transformation between the robot and world coordinates, and leg targets which take orientation into account.

This test script is used in anticipation for controlling the actual robot’s servos.




Spine joints

The “spine” consists of two joints which will allow the front of the robot to pitch and yaw independently of the rear. This will give it more flexibility when turning and handling uneven terrain, as well as other tasks such as aiming its sensors at the world.

Since the spine joints are quite simple, I don’t think there is any need to create IK for this section.



Main Assembly v114 Spine

The “spine” joints separate the body of the quadruped between mostly similar front and rear sections.




Body and spine orientation

The robot body now takes into account that it has to be oriented w.r.t. the “world”. This will be physically achieved by the information acquired by an IMU sensor. If the robot is tilted forwards, the targets for the legs will have to be adjusted so that the robot maintains its balance.

I have defined the kinematics in a way that if the the robot was to rotate w.r.t. the world, the whole body rotates (this can be achieved by moving the test Roll/Pitch/Yaw sliders). However if the servo joints of the spine are moved (test joint 1 / joint 2 sliders) the rear section of the robot will move w.r.t the world, and the rear legs will move with it, while the front section won’t change w.r.t. the world.

In order to achieve this, the leg IK had to be updated so that now the base frames of the front legs are linked to the front section of the robot, and the base frames of the rear legs are linked to the rear section.

You might notice while orientation will be defined by an IMU, pure translation (movement in XYZ) in the world is not considered for now, as it is meaningless without some sort of localisation capability in place. This could be achieved by a sensor (see below), but is an entirely separate challenge for a long way down the line (hint: SLAM).

Quadbot 17 Quad Kinematics_004

New leg targets: Foot roll/pitch can be attained (within limits). In addition, the robot base can be positioned with respect to an outside world frame.

Quadbot 17 Quad Kinematics_002

Original leg targets: The feet are always pointing vertical to the ground.




Target roll and yaw

Initially, the leg target was simply a position in 3D for the foot link, and the foot was always pointing perpendicular to the ground, which made the inverse kinematics fairly easy. In version 2, the target orientation is now also taken into account. Actually, the pitch and roll can be targeted, but yawing cannot be obtained, simply because of the mechanics of the legs. Yawing, or turning, can be done by changing the walking gait pattern alone,  but the idea is that the spine bend will also aid in steering the robot (how exactly I don’t know yet, but that will come later!).

Getting the kinematics to work were a bit trickier than the original version, mainly because the “pitching” orientation of the leg can only be achieved by the positioning of joint 4, whereas the “rolling” orientation can only be achieved by the positioning of joint 5. The available workspace of the foot is also somewhat limited, in part due to that missing yaw capability. Particularly at positions when the leg has to stretch sideways (laterally) then certain roll/pitching combinations are impossible to reach. Nevertheless, this implementation gives the feet enough freedom to be placed on fairly uneven surfaces, and not be constrained to the previously flat plane.

The next challenge that follows from this, is how can realistic target positions and orientations be generated (beyond predetermined fixed walking gaits), to match what the robot sees of the world?

To answer this, first I need to decide how the robot sees the world: Primarily it will be by means of some 3D scanner, such as the ones I’ve looked into in the past, or maybe the Intel RealSense ZR300 which has recently caught my attention. But this alone might not be sufficient, and some form of contact sensors on the feet may be required.

The big question is, should I get a RealSense sensor for this robot ??? 🙂






Updated code can be found on GitHub (single-file test script is starting to get long, might be time to split up into class files!).





Kinematics x4

I have updated the quadruped kinematics program to display all four legs and calculate their IK. I have also started working on the ways various walking gates can be loaded and executed. I found an interesting creeping walk gait from this useful quadruped robot gait study article, and replicated it below for use with my robot:


Creep_Gait


As you can see, the patterns are replicated in quadrants, in order to complete a full gait where each leg is moved forward once. In my test program, I use the up/down and forward/back position of each leg, to drive the foot target for each leg, as was done previously with the GUI sliders and gamepad.

The lateral swing of each leg (first joint) is not changed, but this can be looked at later. The “ankle” (last two joints) is controlled such that the leg plane is always parallel to the ground.

This is what the current state of the program looks like:


Quadbot 17 Quad Kinematics_002


The foot target values are loaded from a CSV into the Python program, and the IK is run for each leg, going through the whole gait sequence:


testQuadGait


I have also added the option to interrupt and run another gait sequence at any point. The reason for this is to try and experiment how to best switch or blend from one gait to another. For now, if a new gait is loaded, the program will stop the current gait, and compare the current pose to all poses in the new gait. The new gait will then start at the pose which most closely matches the current pose, by using a simple distance metric.
If the 8 values of up/down/fwd/back for all legs are in an array LastPose for the last pose the robot was in, and CurrPose for the current pose of interest from the new gait, then the pseudocode looks something like this:

DistanceMetric = 0
for i = 0 to 7
{
  d[i] = abs(CurrPose[i] - LastPose[i])
  if d[i] > threshold
  d[i] += penalty
  DistanceMetric += d[i]
}

If the distance in any particular direction is larger than some threshold, then an arbitrary penalty value can be added. This will bias the calculation against outliers: a pose with evenly distributed distances will be preferred over a pose with an overall small distance but large distance in one direction. This may not actually be of much use in practice, but can be tweaked or removed later.

The above pose switching idea will be expanded on, so that the robot can seemlessly blend between predefined walking gaits, e.g. when in order to turn left and right or speed up and down.

The next step is to start porting all this test code onto the Arbotix, which has a few minor challenges: Ideally the IK matrix operations need to be done efficiently without extra overhead from additional libraries. The gait values which are loaded from a CSV file need to be hard-coded, however this should be simple to do, since as shown above a gait uses the same target values rearranged across quadrants.


Until next time!

Quadbot Inverse Kinematics

Following from the previous post, the Inverse Kinematics (IK) have been calculated, just in time for the test rig hardware, which is arriving this week.

I found a geometrical solution to the IK by breaking the 3D problem down into two 2D problems:

Looking at the leg from the back/front, only joints 1 & 5 determine the offset along the world Y axis. The joints are equalised so that the foot is always facing perpendicular to the ground.

Looking at the leg sideways, the rest of the joints 2, 3 & 4 are calculated using mostly acos/atan2 functions. Note that the leg link lengths need to be projected onto the z-plane, which is why the a2p, a3p etc. notation is used.

DrawingForwards

Trigonometry based on front view.

DrawingSide

Trigonometry based on side view.

The test program now has controls for positioning a target for the foot to follow, based on the IK. This was very helpful for testing and debugging. A test function was also added which simply moves the target in an elliptical motion for the foot to follow. It is a very simple way of making the leg walk, but could be used as the foundation for a simply four-legged walking gait.

Quadbot 17 Kinematics_003

Kinematics test program updated with target visual and sliders.

testIKEllipse

Test of IK using elliptical motion target which the foot (F) follows.

The next tasks are to build the physical test rig, learn how to use the Arbotix controller and port the IK code to Arduino.


The kinematics are written in Python/TKInter, and code can be found on GitHub.

The geometrical drawings were made using the browser-based GeoGebra app.
