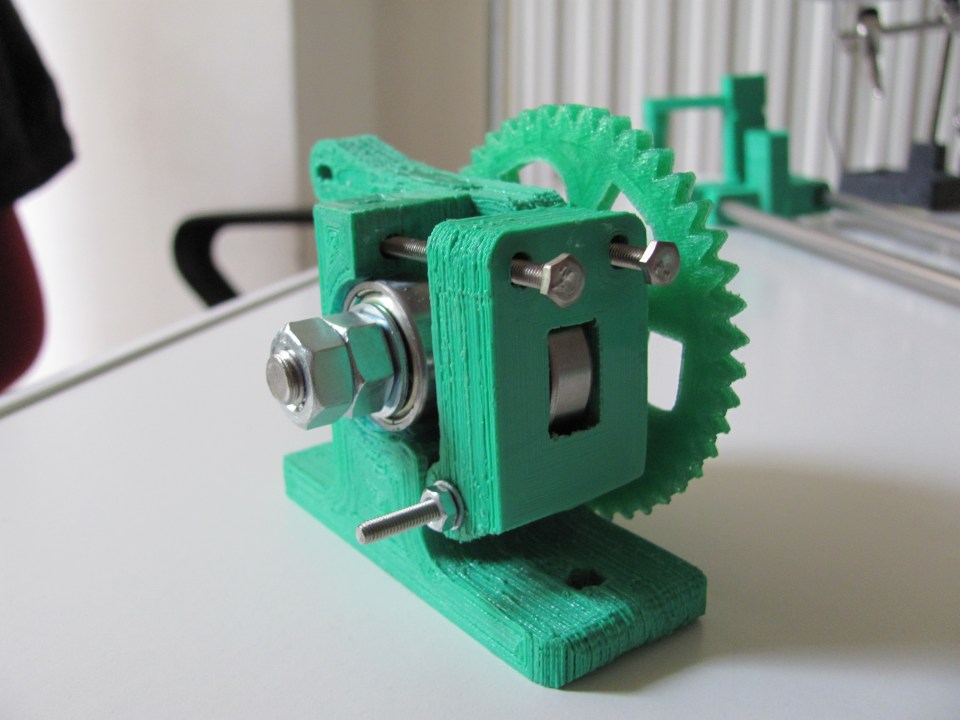

Extruder with idler block

The idler block is attached to the extruder at the top with two long (40 mm) M3 bolts. The hinged bottom pivots on another M3 bolt (need to cut the excess thread or use a more suitable size).
